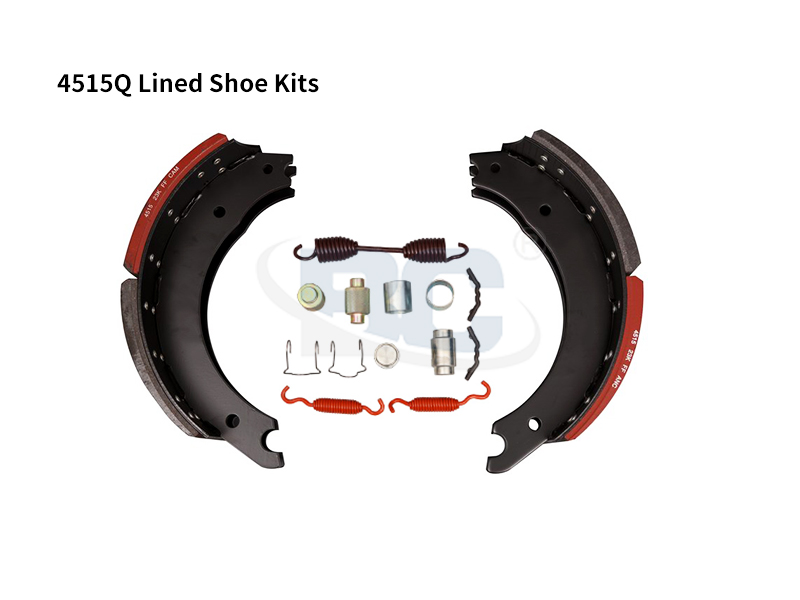

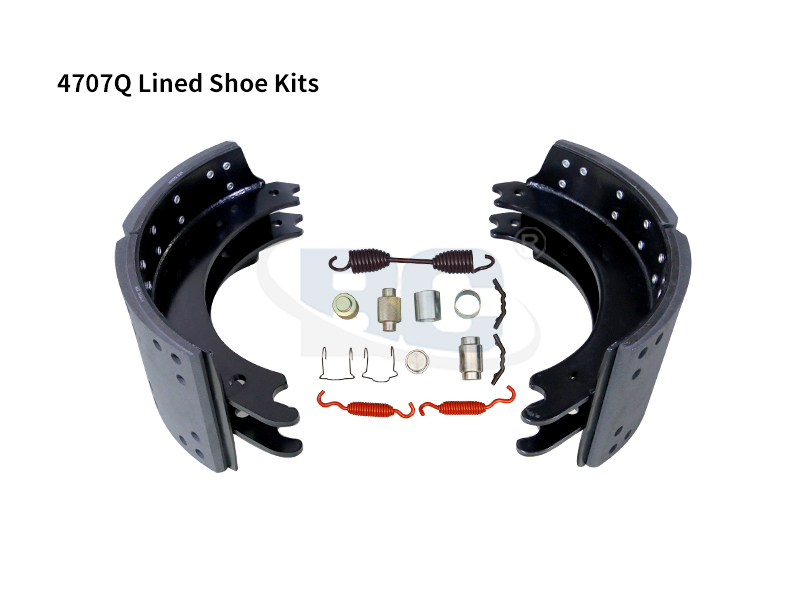

What Components Are Typically Included in a Complete Lined Brake Shoe Kit for Heavy-Duty Truck Axles, and Why Is Each Component Essential?

A complete lined brake shoe kit for heavy-duty truck axles is far more than just a pair of shoes with attached friction material. It is an engineered system designed to restore braking performance to factory specifications. Missing or substandard components compromise safety, reduce lining life, and cause unpredictable brake behavior. Zhejiang Bangchi Auto Parts Co., Ltd., founded in spring 2016, brings over 20 years of team expertise in brake products. As a specialist in R&D, manufacturing, and sales of heavy duty brake shoes & lined shoes, Bangchi operates a production line with a capacity of 2 million brake shoes and exceeds an annual turnover of 100 million RMB. Under strict IATF 16949 quality management, Bangchi manufactures complete lined brake shoe kits that include every essential component.

1. Lined Brake Shoes (Primary Component)

• What it is: Steel shoe table with friction material attached via rivets or high-temperature adhesive.
• Why essential: The shoe transfers brake chamber force to the friction surface. Without precisely formed shoes (correct arc radius, web thickness, and anchor hole placement), the lining cannot contact the drum evenly, causing grab, pull, or reduced braking force.
• Bangchi specification: Shoe arc radius tolerance ±0.3mm, web thickness 5–7mm for heavy duty, IATF 16949 certified.

2. Return Springs (Primary and Secondary)

• What they are: Coil springs that retract the brake shoes after brake application.
• Why essential: Return springs prevent brake drag by pulling shoes away from the drum. Weak or mismatched springs cause residual drag (fuel waste, heat buildup) or incomplete retraction (accelerated lining wear).
• Bangchi specification: Spring rates matched to OEM specifications (e.g., primary spring 85–110 N/mm, secondary spring 55–75 N/mm depending on axle rating).

3. Hold-Down Springs and Pins

• What they are: Springs and retaining pins that secure the brake shoes to the backing plate or spider.
• Why essential: They keep shoes properly positioned against the anchor pin and camshaft roller. Without correct hold-down tension, shoes can lift off the anchor during braking, causing erratic force transmission and noise.
• Bangchi specification: Zinc-plated pins for corrosion resistance; springs tested for tension consistency (±5% of nominal).

4. S-Cam Rollers or Roller Bearings

• What they are: Cylindrical rollers that sit between the S-cam and brake shoe web.
• Why essential: As the S-cam rotates, it pushes the rollers outward, forcing the shoes against the drum. Worn rollers (flattened or pitted surfaces) reduce the mechanical advantage of the cam, requiring higher air pressure for the same braking force.
• Bangchi specification: Case-hardened steel rollers (HRC 55–62) with precision-ground outer diameter to ±0.02mm.

5. Camshaft Bushings (Where Applicable)

• What they are: Bronze or composite bushings that support the camshaft within the brake spider.
• Why essential: Worn bushings allow camshaft deflection, reducing S-cam rotation angle and causing uneven shoe application. New bushings restore proper geometry and prevent premature S-cam wear.
• Bangchi specification: Oil-impregnated bronze or PTFE-lined steel-backed bushings per OEM application.

6. Anchor Pins and Clips

• What they are: Pins that serve as the pivot point for each brake shoe, with retaining clips.
• Why essential: The anchor pin is the fixed point around which the shoe rotates. Worn anchor pin bores or missing clips allow shoe movement away from the intended pivot axis, causing misalignment and uneven wear.
• Bangchi specification: Anchor pins ground to +0.00/-0.05mm tolerance; spring steel clips with anti-corrosion coating.

7. Grease Seals and Hardware (For Lubricated Camshafts)

• What they are: Rubber or synthetic seals that retain grease within the camshaft bushing area.
• Why essential: Prevent contamination (dirt, water, salt) from entering bushings and retain lubricant. Failed seals lead to rapid bushing wear and camshaft seizure.
• Bangchi specification: Nitrile rubber seals with temperature rating -40°C to +120°C.

Complete Lined Brake Shoe Kit Component Comparison

Why Complete Kits Outperform Partial Replacements

• Matched component compatibility: All springs, rollers, and bushings are selected to work together, not mismatched from different suppliers.
• Eliminated guesswork: Technicians do not need to decide which individual parts to reuse—replacing the full kit ensures all wear items are new.
• Single SKU simplicity: One kit number covers all needed parts, reducing inventory complexity and ordering errors.
• Predictable labor time: Mechanics know exactly what to expect; no mid-job trips to the parts counter for missing components.

Zhejiang Bangchi Auto Parts Co., Ltd. has established strategic cooperation with many well-known domestic and overseas manufacturers and OEM customers by delivering complete, ready-to-install lined brake shoe kits. The management team of over 20 people and production capacity of 2 million brake shoes annually ensures consistent quality under IATF 16949. Every lined brake shoe kit from Bangchi contains all essential components listed above, application-matched to specific axle models from Meritor, Dana, Rockwell, BPW, SAF, and others.

FAQs

• Q1: Does Zhejiang Bangchi Auto Parts Co., Ltd. offer lined brake shoe kits for both riveted and bonded lining attachments?
  A: Yes. Zhejiang Bangchi Auto Parts Co., Ltd. manufactures both riveted and bonded lined brake shoe kits. Riveted kits are preferred for applications where quick lining changes in the field are desired (e.g., mining, logging). Bonded kits provide 15–20% more usable friction material volume (no rivet holes) and are standard for most on-highway fleets. Both types meet the same dimensional and friction performance standards under Bangchi's IATF 16949 quality system. When ordering, specify your preferred attachment method and axle application.
• Q2: Can I purchase only the lined shoes from Bangchi without the full kit components?
  A: Zhejiang Bangchi Auto Parts Co., Ltd. offers lined shoes as standalone products, but strongly recommends the full kit for optimal performance. Field data from Bangchi's 20+ years of brake product experience shows that fleets using only shoes (reusing old springs and rollers) experience return spring failures 35% sooner and lining wear that is 20% less uniform compared to full-kit installations. The full kit ensures all wear-related components are refreshed simultaneously, maximizing brake life and safety. However, Bangchi respects customer preference and supplies shoes separately when requested.
• Q3: How do I select the correct lined brake shoe kit for my specific heavy-duty axle?
  A: Zhejiang Bangchi Auto Parts Co., Ltd. requires three pieces of information for accurate kit selection: (1) Axle brand and model (e.g., Meritor Q-Plus, Dana Spicer), (2) Brake size (e.g., 16.5″ x 7″ or 15″ x 4″), and (3) Lining thickness code or friction rating (EE, FF, GG). Bangchi's technical team has cross-referenced over 2,000 OEM part numbers to their kit numbers. Provide your vehicle's VIN or existing brake part numbers, and Bangchi's management team of over 20 people will ensure precise matching. Online and printed catalogs are also available for self-service identification.
