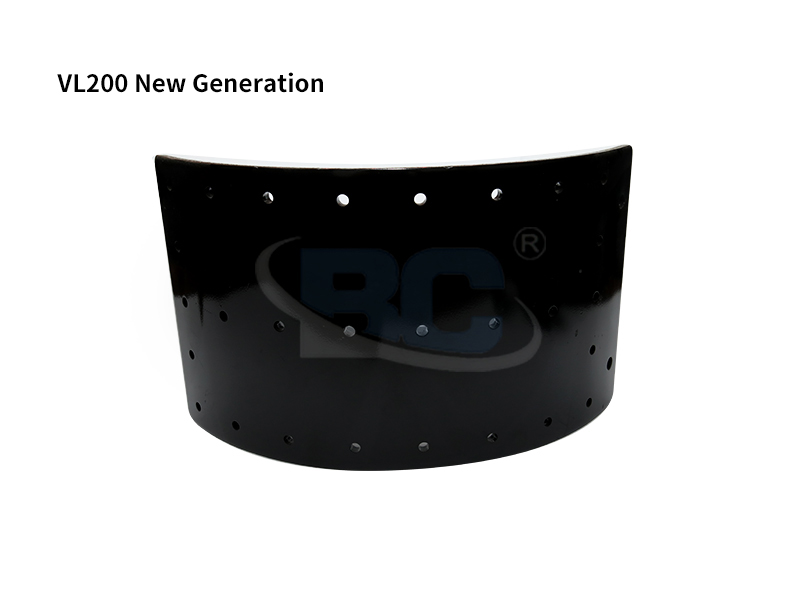

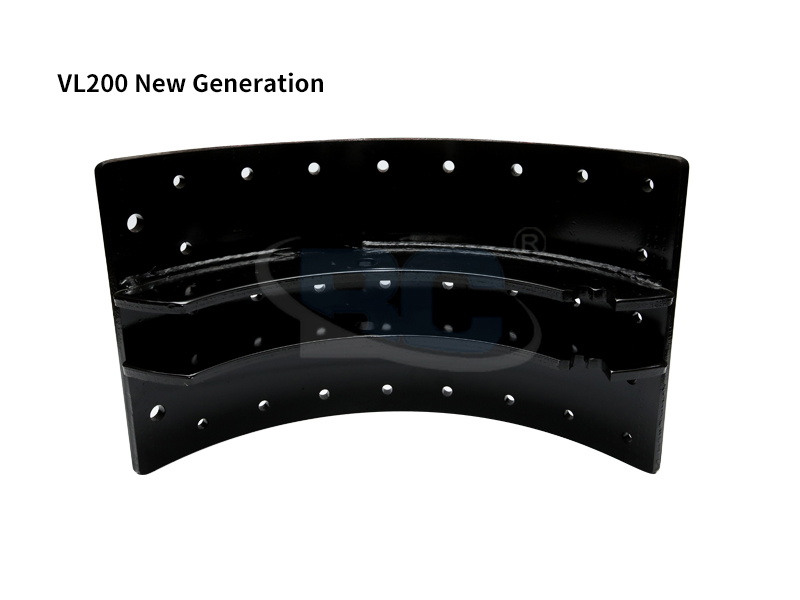

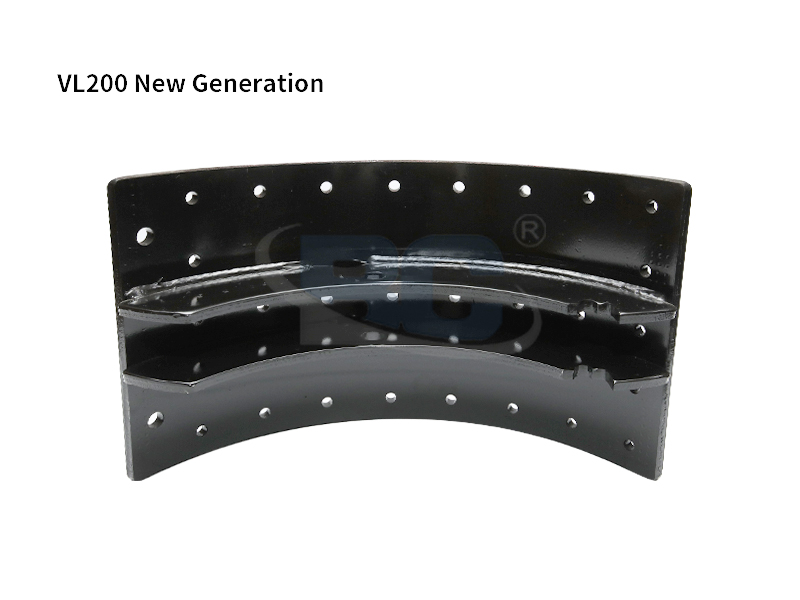

3095196 Brake Shoe

3095196 Brake Shoe

Part Number:VL200 New Generation

Product Size:410*225mm

Number of rivet holes: 28

Product OE number: 3095196

Suitable for: Volvo truck

contact iconContact Us
OE 3095196 Volvo Truck
VL200 New Generation

3095196 Brake Shoe

Part: VL200 410 × 225 mm 28 Rivet Holes Heavy-Duty
3095196 Brake Shoe 3095196 · VL200 series

The 3095196 Brake Shoe (VL200 New Generation) is a premium braking component engineered specifically for Volvo truck applications. With a substantial 410mm by 225mm footprint and 28 precision-engineered rivet holes, this shoe delivers exceptional braking force distribution and superior thermal management for heavy-duty operations. The advanced metallurgy ensures consistent friction performance across extreme temperature ranges, while the optimized geometry reduces brake noise and vibration. Designed to meet the rigorous demands of modern Volvo truck fleets, the 3095196 offers extended service life, reduced drum wear, and reliable stopping power in both highway and off-highway conditions. This shoe represents the latest evolution in commercial vehicle braking technology, combining proven durability with innovative design features for maximum safety and efficiency.

Core Advantages

  • 28-hole configuration for superior clamping
  • Volvo-specific engineering for perfect fit
  • Advanced alloy for high-temperature stability
  • Reduced brake fade and improved response
  • Extended lining and drum service life

Technical Specifications

  • Size: 410 × 225 mm
  • Rivet holes: 28 (dia. 10.0mm)
  • Material: Advanced alloy steel
  • Friction coeff: 0.42 – 0.48
  • Max operating temp: 520°C

Vehicle Fitment

  • Volvo FH Series
  • Volvo FM Series
  • Volvo FMX Series
  • Compatible with Volvo axles
  • OEM replacement 3095196

Applications & Usage

The 3095196 Brake Shoe is specifically engineered for Volvo FH, FM, and FMX truck series operating in long-haul, heavy-load, and demanding terrain conditions. Its 28-rivet design ensures uniform pressure distribution across the brake drum, delivering consistent stopping power even under extreme loads and steep gradients. This shoe is ideal for fleet operations requiring high reliability, reduced maintenance intervals, and superior braking performance. The VL200 New Generation technology provides enhanced fade resistance, making it particularly suitable for mountainous routes, heavy urban traffic, and high-speed highway applications where brake durability is critical.

Installation & service: Always verify drum surface condition before fitting. Torque rivets to 40–45 N·m using a star pattern. Allow 250–350 km of progressive braking for proper bedding. Inspect lining thickness every 15,000 km; replace when worn below 10mm or if uneven wear, cracking, or glazing is observed. Use only Volvo-approved brake components for optimal performance.

Frequently Asked Questions

Q: Is the 3095196 compatible with all Volvo trucks?

The 3095196 is designed for Volvo FH, FM, and FMX series. For other Volvo models, please verify the OE number and brake dimensions before ordering.

Q: What is the difference between VL200 and previous versions?

The VL200 New Generation features an advanced alloy composition, improved heat dissipation, and a refined friction formula that delivers more consistent braking performance with reduced noise and vibration.

Q: How often should the 3095196 brake shoe be inspected?

We recommend inspection every 15,000 km under normal operating conditions. For severe duty or mountainous routes, reduce the interval to 10,000 km for optimal safety.

Q: Can this shoe be used with aftermarket brake drums?

For best performance and safety, we recommend using Volvo-approved brake drums. Aftermarket drums must meet Volvo specifications for diameter, material, and surface finish.
