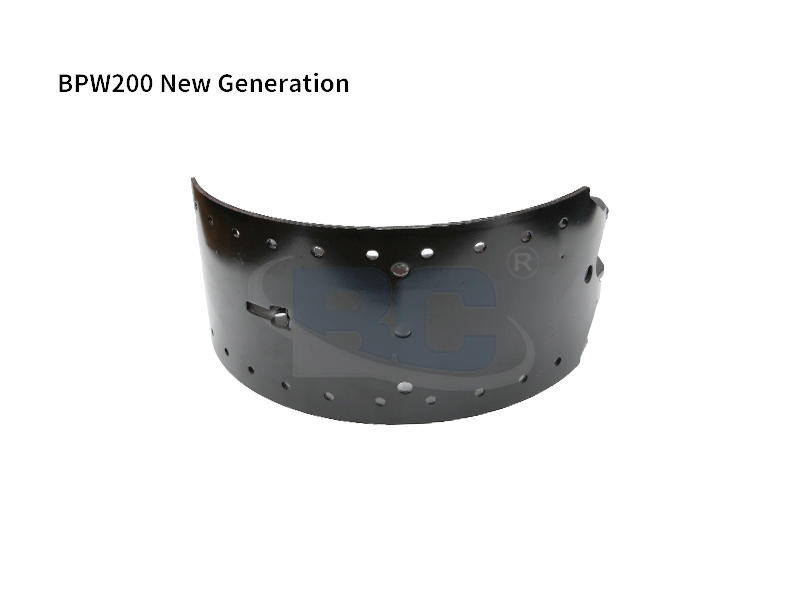

0509127830 BPW200 New Generation Brake Shoe

0509127830 BPW200 New Generation Brake Shoe

Part Number:BPW200 New Generation

Product Size:420*200mm

Number of rivet holes:20

Product OE number: 0509127830

Material: Steel or customized

contact iconContact Us
New Generation OE 0509127830

BPW200 New Generation Brake Shoe

Part BPW200 420 × 200 mm 20 Rivet Holes Steel / Custom

The BPW200 New Generation brake shoe is a next-generation solution engineered for modern heavy-duty trailer and truck axles. With a robust 420mm by 200mm footprint and 20 precision-engineered rivet holes, this shoe delivers superior braking force distribution and extended service life. The advanced steel substrate, available in customized metallurgies, offers excellent thermal conductivity and fade resistance under extreme loads. Its optimized geometry reduces stress concentrations, while the anti-corrosion coating ensures durability in harsh environments. Rigorously validated through million-cycle dynamometer tests, the BPW200 sets a new benchmark for reliability in commercial vehicle braking systems, making it the preferred choice for fleet operators seeking lower total cost of ownership.

BPW200 New Generation Brake Shoe BPW200 · next-gen design

Core Advantages

  • 20-hole pattern for uniform clamping
  • High-strength steel with optional coating
  • Fade-free performance up to 500°C
  • Compatible with BPW, SAF & Knorr
  • Reduced wear on drums and linings

Technical Specs

  • Dimensions: 420 × 200 mm
  • Rivet holes: 20 (dia. 9.0mm)
  • Material: Steel (custom grades)
  • Friction coeff: 0.40 – 0.45
  • Max operating temp: 500°C

Applications

The BPW200 is specifically developed for next-generation trailer axles, semi-trailers, and heavy-duty trucks in long-haul and distribution operations. Its 20-rivet configuration provides enhanced stability for high-mileage fleets, while the steel substrate withstands the demands of mountainous routes and frequent stop-and-go traffic. Commonly specified for BPW EcoPlus, SAF Intradisc, and other leading axle platforms, this shoe is also available with custom hole patterns and friction materials to match unique OEM requirements.

i
Installation & care: Always inspect the brake drum surface before installation. Tighten rivets in a star pattern to 35–40 N·m. Bedding period of 150–250 km is essential. Check lining wear at 15,000 km intervals; replace when below 9mm.

Frequently Asked Questions

Q: What axle types are compatible with BPW200?

The BPW200 fits most BPW, SAF, and Knorr axle systems with 420mm drum diameter.

Q: Can the steel material be customized?

Yes, various steel grades and surface treatments are available to meet specific requirements.

Q: What is the recommended replacement schedule?

Inspect every 15,000 km. Replace when lining reaches 9mm thickness or shows uneven wear.

Q: Does this shoe require special riveting tools?

Standard hydraulic or pneumatic riveting equipment with 9mm dies is suitable.
